PU-VIP

Name: PU-VIP
Brand: Fujian Supertech Cold Chain Technology Co., Ltd.
Price: 500000 USD

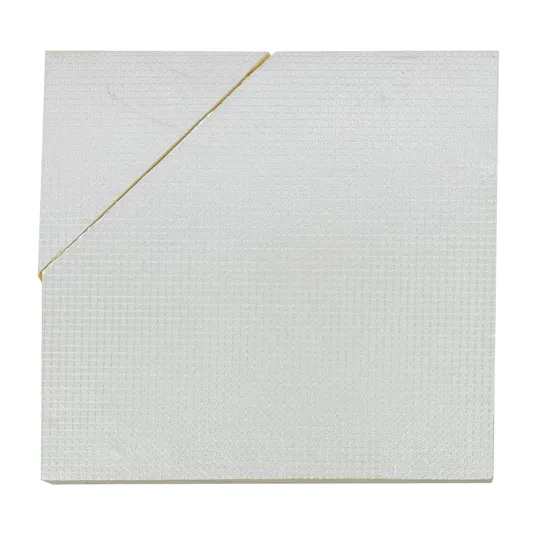

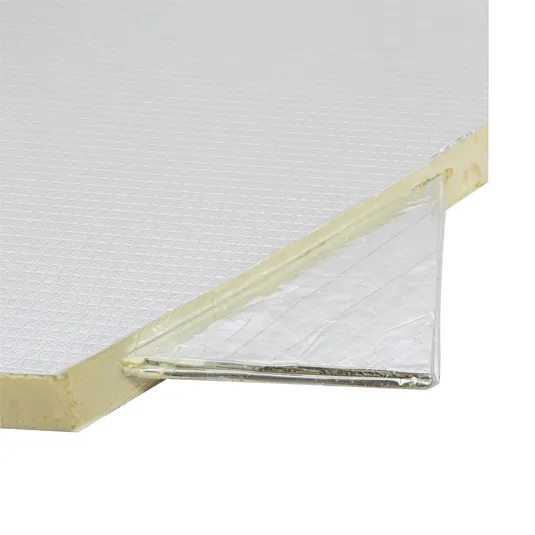

Adopting the core product vacuum insulation board (VIP) independently developed by Saite New Materials, it has a low heat transfer coefficient and superior insulation performance.

Specification

Specification of PU-VIP

Single sided foaming		Double sided foaming
Foam thickness range	15-100mm	Foam thickness range	25-100mm
Maximum size	1100 * 1800mm	Maximum size	1100 * 1800mm
Dimensional tolerance	Length and width ± 1mm, thickness ± 1.5mm	Dimensional tolerance	Length and width ± 1mm, thickness ± 1.5mm
PU	Yellow, density 50-60kg/m ³, thermal conductivity ≤ 23mW/m · k	PU	Yellow, density 50-60kg/m ³, thermal conductivity ≤ 23mW/m · k
VIP	Bright silver, density of 300~330kg/m ³, thermal conductivity ≤ 2.5mW/m · k	VIP	Bright silver, density of 300~330kg/m ³, thermal conductivity ≤ 2.5mW/m · k
PU-VIP	The length and width of the PU protective layer on one side should be ≥ 10mm, and the thickness of the protective layer should be ≥ 10mm	PU-VIP	The length and width of the PU protective layer on one side should be ≥ 10mm, and the thickness of the protective layer should be ≥ 10mm
PU-VIP		Common surface materials	Checkered cloth PET/Aluminum plate, skin, etc
