In the logistics battlefields of foodservice, fresh produce, medical supplies, and retail, three questions constantly challenge efficiency and profit:
Is the temperature stable? – The root of spoilage.
Can it be moved easily? – The black hole of labor costs.
Can it go anywhere, anytime? – The culprit behind broken cold chains.
Fixed cold storages can't be moved, ordinary insulated boxes are too bulky, and reefer trucks are expensive – for short-haul transfers and inter-warehouse shuttles, are we forced to accept high losses and low efficiency?

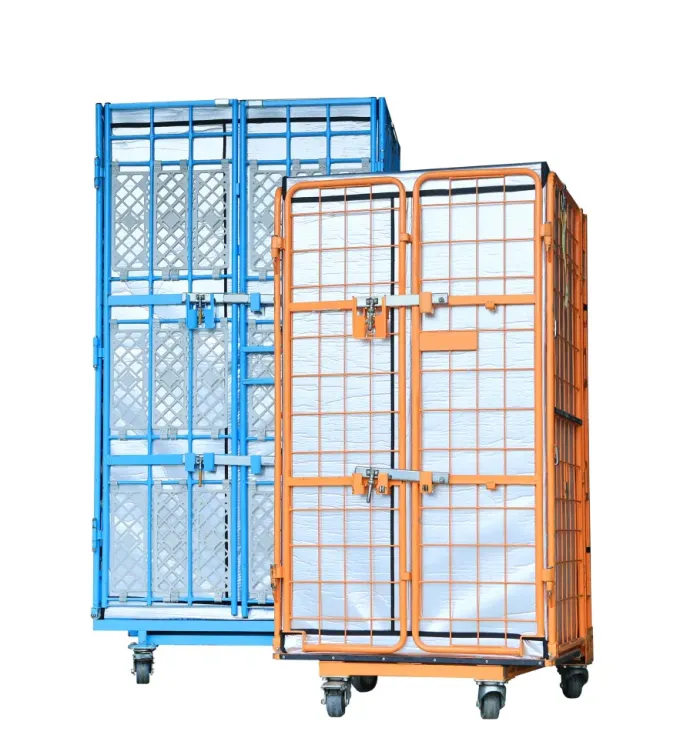

SuperCooler Mobile Insulated Roll Cage – one answer to all these problems. No fuel, no electricity – it turns a "mobile mini-warehouse" on wheels, making your cold chain truly "alive."
The Insulated Roll Cage: How Does It Achieve Stable Temperature Control Without Plugging In?
The mobile insulated roll cage is not just a simple "cage + box" – it is a systematic, high-efficiency temperature-controlled transport solution. How does it deliver long-lasting insulation and multi-temperature adaptability?
VIP (Vacuum Insulation Panel) – The "Constant-Temperature Jacket"
The interior of the roll cage uses PU-VIP insulation boards – polyurethane foam combined with vacuum insulation panels – which are the technological core for long-term thermal performance.
The fundamental principle of VIP is to use a high-barrier encapsulation film, a porous inner core, and vacuum evacuation to minimize air convection and gaseous heat conduction to the lowest possible level.
Superior insulation performance: Supertech VIPs achieve a thermal conductivity as low as 0.002 W/(m·K) – roughly one-tenth that of ordinary polyurethane foam – effectively blocking external heat radiation.

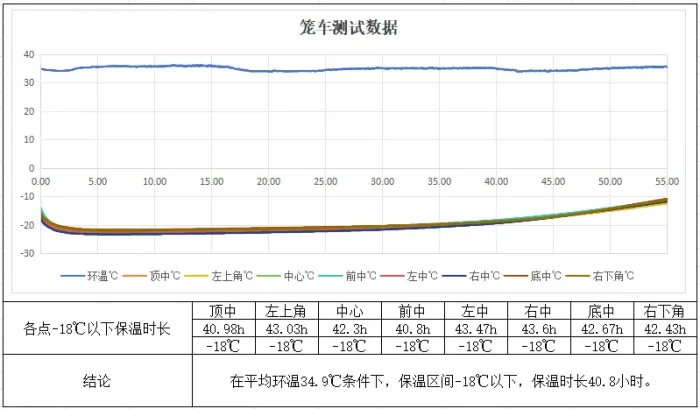

Stable temperature retention: In a 45°C high-temperature environment, with sufficient cold packs (phase-change materials), the internal temperature can be maintained in refrigerated or frozen conditions for over 40 hours (customizable hold times from 72 to 120 hours and temperature zones available).
Temperature "On the Move": Flexible Multi-Temperature Zone Adaptation
The mobile insulated roll cage is not a fixed-temperature device; it is a transport carrier that can be flexibly configured to match the temperature requirements of your cargo

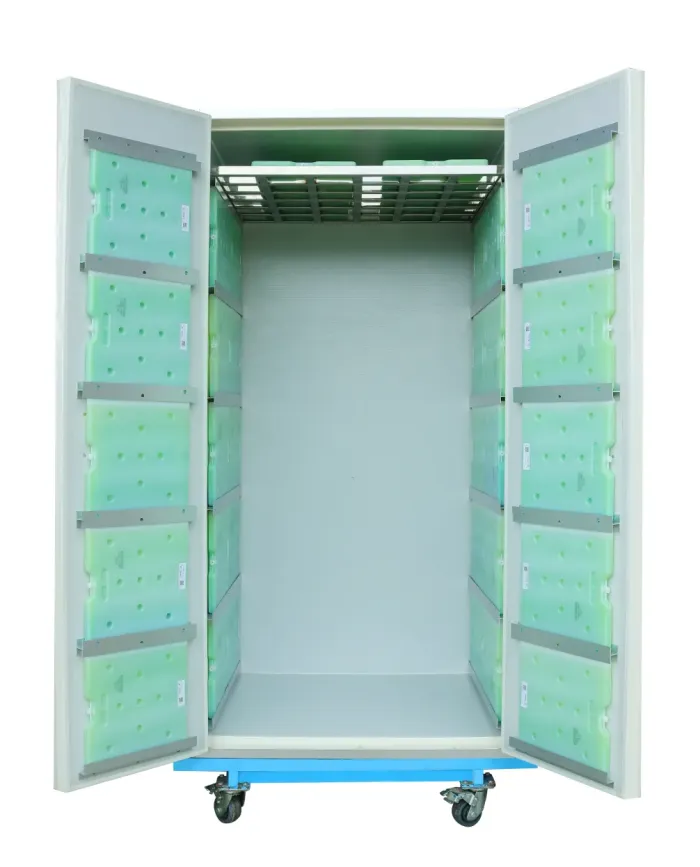

Full temperature range coverage: By using PCM cold plates with different phase-change points, the internal temperature can be precisely maintained at any set point between -25°C and +25°C – covering frozen, chilled, and ambient-temperature goods in a single solution.
One cage, multiple uses – combined cold/ambient shipping: When shipment volumes are low, one or more roll cages can be transported alongside ordinary goods (combined cold/ambient mode), eliminating the need to dispatch an entire reefer truck and significantly reducing transport costs. Upon arrival, the cage can be wheeled directly into the storage area for efficient unloading – with no temperature-break risk throughout.
Labor-Saving Design: Moving No Longer a Headache
To address the industry's low handling efficiency, the mobile roll cage has been deeply optimized for ergonomics and mobility:
Easy to push: Equipped with ergonomic handles and 360° heavy-duty swivel casters. Fully loaded capacity ranges from 300 to 500 kg, and it can be smoothly maneuvered with one hand through elevators, loading docks, and aisles.
Fast turnaround: The cage can be rolled directly into a box truck – enabling seamless "truck-to-cage" transfer without repeated reloading. Single-transfer efficiency can be increased by more than 50%, greatly reducing transit time and labor costs.
The Insulated Roll Cage: A Systematic Solution, Not Just a "Cage + Box"
As a mobile insulated roll cage manufacturer, SuperCooler delivers not just equipment, but a comprehensive, worry-free temperature control system:
1. Insulation Performance – Backed by Data
VIP thermal conductivity as low as 0.002 W/(m·K)
Hold time over 40 hours at 45°C ambient
Wide temperature range: -25°C to +25°C
2. Efficient, Labor-Saving, and Customizable
Load capacity 300–500 kg, easy one-hand maneuvering
Insulation thickness 30–100 mm optional; non-standard sizes available
Optional IoT smart monitoring module – real-time temperature tracking, automatic over-temperature alerts, fully compliant with pharmaceutical GSP traceability requirements
3. Safe, Eco-Friendly, Cost-Effective
Materials meet RoHS and REACH standards, verified by SGS for over 220 restricted substances
Reusable – total cost far lower than single-use foam boxes. No waiting during split-warehouse unloading, saving significant labor costs. Even during transport equipment breakdowns, the built-in cold packs maintain temperature – zero over-temperature risk throughout.
SuperCooler – A Trusted Choice

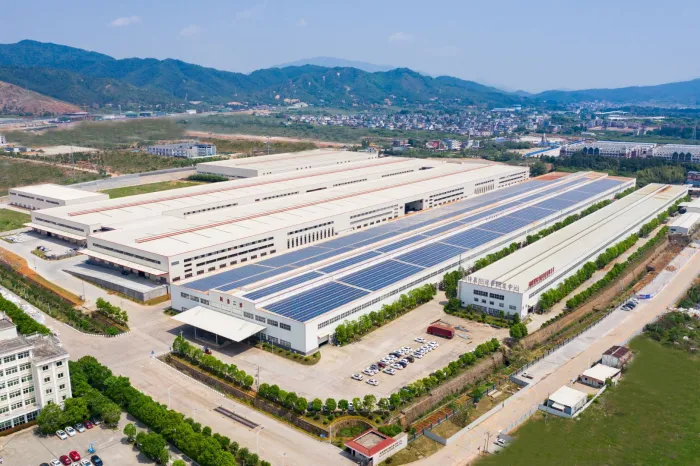

SuperCooler, with over 16 years of specialization in cold-chain insulation, leverages the core vacuum insulation expertise of its parent company Supertech to provide end-to-end, systematic temperature-control solutions – from core materials to final applications.
Industrial capability: The SuperCooler brand offers a full product portfolio including passive insulated boxes, PCM cool boxes, vaccine transport boxes, insulated roll cages, pallet insulated boxes, and more – with cumulative global shipments exceeding 400,000 units.
Long-term strategic partners: With stable quality and a comprehensive service system, SuperCooler has established lasting partnerships with industry leaders such as Sinopharm Group and SF Express Pharma, serving pharmaceuticals, fresh produce, foodservice, outdoor, and cold-chain logistics sectors, and exporting to multiple countries and regions worldwide.
SuperCooler provides a complete service chain – from needs assessment, solution design, sample confirmation, batch delivery, to after-sales support. Our technical and commercial teams respond in tandem to safeguard every cold-chain shipment.
FAQ – Questions You May Have
Q1: What is the biggest advantage of a mobile insulated roll cage compared to a traditional reefer truck?
A: The biggest advantages of the SuperCooler roll cage are flexibility and cost-effectiveness. It requires no fuel, no electricity, and is not subject to vehicle restrictions – it can go right into the "last mile" of supermarkets and residential areas. It also supports combined cold/ambient shipping – when volumes are low, you don't need to dispatch a separate reefer, saving substantial freight costs.
Q2: How can I ensure temperature data traceability during transport?
A: The SuperCooler roll cage can be equipped with an optional IoT smart temperature-control module. Internal temperature data is uploaded to the cloud in real time. Users can view temperature curves anytime via smartphone or computer, and an automatic alert is triggered if temperature exceeds limits – fully compliant with pharmaceutical GSP and other regulatory requirements.
Q3: How should the cold packs inside the cage be configured, and how long will they last?
A: Cold pack configuration depends on the target temperature, ambient temperature, and required hold time. Our technical team will provide a professional cold-source plan based on your specific needs (temperature zone, duration, volume). Under standard 45°C high-temperature test conditions, with proper configuration, effective temperature hold can exceed 40 hours (customizable hold times from 72 to 120 hours and temperature zones available).
Q4: Can I get a custom size for my special cargo dimensions?
A: Absolutely. We support non-standard customization. Whether it's cage dimensions, insulation thickness (30–100 mm), hold time, or temperature range, SuperCooler can flexibly design to match your specific application – ensuring a perfect fit for your business needs.
