Say Goodbye to “Bulky & Inefficient”! SuperCooler Yunqing VIP Vacuum Insulation Panels Deliver a New Pallet-Box Logistics Solution

In unit-load logistics, the dead weight of a pallet-sized insulated box is a severely underestimated cost black hole:

More dead weight → less cargo per trip → more trips required → fuel, tolls, and labor costs skyrocket.

Traditional insulation materials are either too heavy, or light but poorly insulating (EPS foam has a thermal conductivity as high as 0.040 W/(m·K)).

SuperCooler Yunqing VIP vacuum insulation panels offer a new “weight reduction without performance loss” solution specifically for pallet-sized insulated boxes.

The Pallet-Box Dilemma – Does It Sound Familiar?

Conventional solutions fall short:

• Insufficient insulation – EPS/PU are lightweight but have high thermal conductivity, leading to temperature failures during cold-chain transport.




• Overly thick walls – To compensate for poor insulation, walls must be thickened, severely eating into internal volume.




• High operating costs – Dead weight + inefficient insulation → higher fuel consumption, increased product loss, and poor ROI.

Yunqing VIP Core Parameters – See the Difference at a Glance

SuperCooler Yunqing VIP panels are engineered for lightweight pallet-box solutions.

75% lighter than traditional VIP cores (180–220 kg/m³), yet 6–7 times the insulating power of EPS foam – that’s genuine “weight reduction without compromise.”

Six Core Advantages – Redefining Pallet-Box Insulation Solutions

① 75% Weight Reduction

Density of just 42 ± 5 kg/m³. For the same volume, this saves about 140 kg per cubic meter compared to traditional VIP cores (180–220 kg/m³).

A standard pallet box with 0.1 m³ of insulation layer sheds 14 kg of dead weight immediately.

② Dramatically Better Insulation

Thermal conductivity of 0.0055 – 0.0065 W/(m·K) – 3 to 4 times more effective than standard PU (0.023 W/(m·K)). Long-haul cold-chain transport stays stable, with far lower spoilage rates.

③ Thinner Walls, More Payload Volume

With equal insulation performance, wall thickness can be reduced by 40% – 60%.

Internal usable volume increases by 15% – 25% – the same box carries significantly more product.

④ Service Life Exceeds 5 Years

Vacuum performance remains stable over the long term. One investment, years of use – no frequent insulation replacement.

⑤ Broad Temperature Range

–80°C to +85°C – covers everything from deep-freeze to medium-high temperatures. Whether for frozen food, biopharma, or chemical raw materials, it performs reliably.

⑥ Customizable Processing

Minimum thickness down to 10 mm; supports non-standard sizes and complex shapes. Perfectly adaptable to various pallet-box designs.

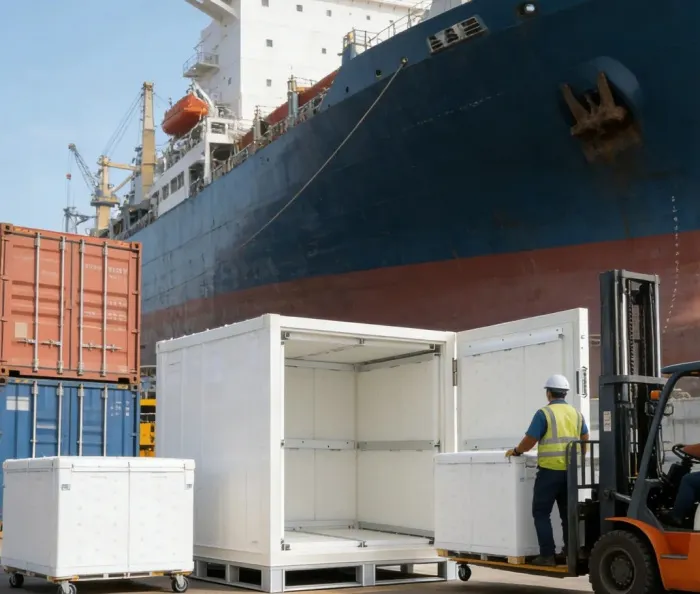

Application Scenarios – Which Pallet Boxes Should Upgrade?

Where does SuperCooler Yunqing VIP make the most impact?

Air-freight cold-chain pallets – Every gram saved counts. A SuperCooler Yunqing air-freight box cuts nearly 6 kg per unit – saving hundreds of dollars per flight.

Pharmaceutical/vaccine pallet boxes – Strict 2–8°C control plus lightweight construction, ideal for air and long-distance transport.

Fresh-food pallet boxes – Thinner walls, more internal volume – load 20% more strawberries, seafood, or steak per trip.

Cross-border returnable containers – Multi-modal (air/sea/land) transport benefits from both lightness and insulation, reducing total chain costs.

Military/specialty material containers – Wide temperature range (–85°C to +85°C) + high reliability + 5+ year service life.

Why Choose SuperCooler?

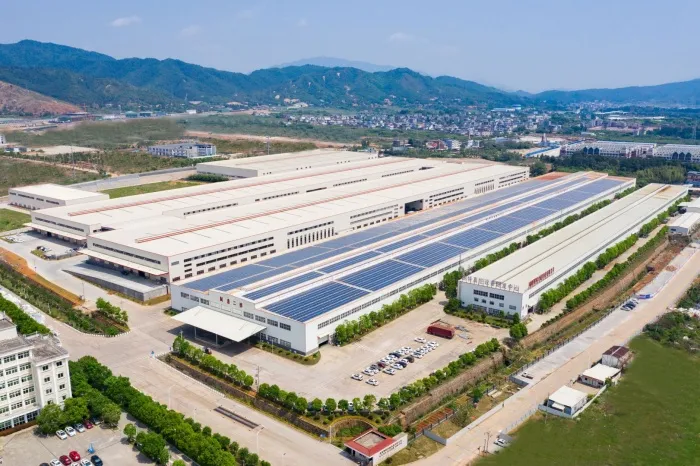

SuperCooler, backed by its parent company Supertech with two decades of vacuum-insulation expertise, delivers the Yunqing VIP panel – purpose-built for lightweight, high-performance thermal protection.

• Hardcore technology – New-generation ultra-low-density porous fiber composite core + vacuum encapsulation.

• Data-proven – 42 ± 5 kg/m³ density, 0.0055 – 0.0065 W/(m·K) – validated by third-party testing.

• Full-service support – From selection, sampling, and testing to mass production and after-sales – we accompany you every step.

• Broad applications – Already proven in air-freight containers, refrigerated trucks, portable cold boxes, home appliances, and more.

Follow SuperCooler for more energy-efficient, safe, and reliable cold-chain temperature-control solutions.
